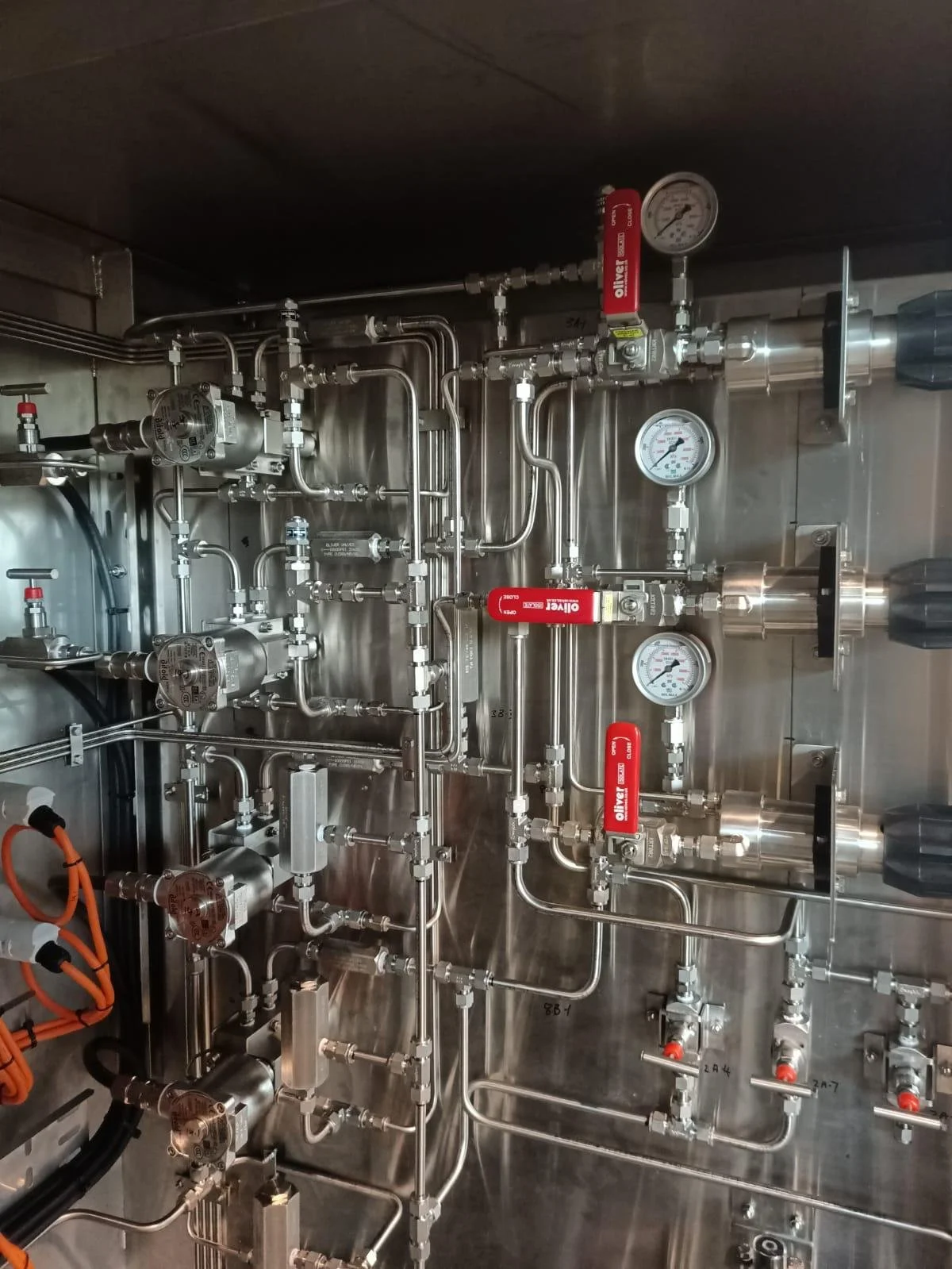

Close-up view of a stainless steel industrial piping system with pressure gauges, valves, and fittings.

A technician working on a server rack with multiple network cables connected to a server and networking equipment.

Two workers in a factory or industrial setting working on electrical or machinery panels surrounded by equipment and tools.

what we offer

Provide Solutions For:

Pneumatic And Hydraulic Applications

- Specialty Gas Solutions (Example: H2, CH4, O2. N2, CO2 And Etc).

- Pneumatic & Hydraulic Applications Including N2 Leak Testing Systems, General Filtration, Valve & Actuators Integration, Water Treatment Plant and Etc.

Electrical solutions for Automated System Applications

- Servo Motors Wiring, Robotics Wiring, Sensors Wiring, PLC and Etc.

- Electrical Panels, Electrical Pumps, Conveyor Systems, Electrical Actuators and Etc

- Electrical & Instrumentation Panel Works.

- Server Racks & Data Centers.

Service & Maintenance:

- Refurbishing Works On Existing Systems Like HPU, Hydrotest Units, Gas Booster Systems, Tanks, Pneumatic & Electrical Actuators And Etc.

- Electrical And Instrumentation Panels, Server Racks And Etc.

Troubleshooting & Repair Works:

- We Also Provides Troubleshooting Services For Your Existing Installation Or Systems For Both Electrical, Pneumatic & Hydraulic Applications.

Schuh Technology

Pneumatic & Hydraulic

Electrical Solutions

Past Projects

Customized Gas Detector System Come With Control Panel & Gas Cage For H2, CH4 & N2 Gas

Comissioned Date: Feb 2021
Design Pressure Of System: 2,900psi / 200Bar
Operating Pressure: 72.5bar / 5Bar
Media: H2, CH4 & N2 Gas
Application: Calibration of data loggers and digital measuring meters.

The Requirement: In the event of H2 or CH4 gas leak, customized control panel must be able to detect the before mentioned gas. Once gas leak was detected, an alarm will sound to warn the people within the premises. The pressure within the control panel must be able to purge pressure out of building automatically. The system can be depressurized by turning off the alarm at the control panel.

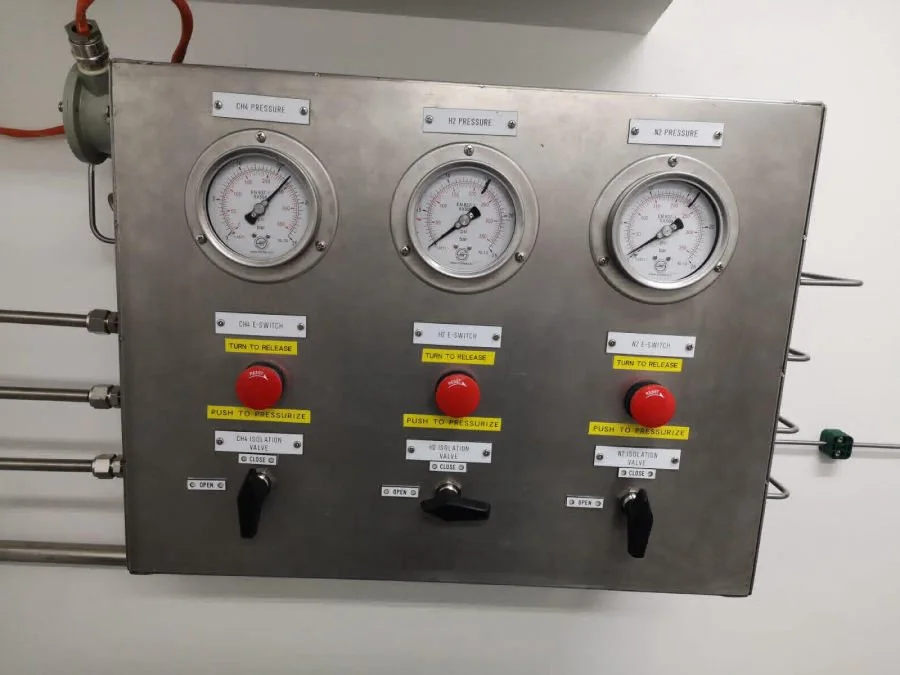

Metal control panel with three pressure gauges, red emergency stops, black switches, and yellow labels with instructions, mounted on a wall with pipes.

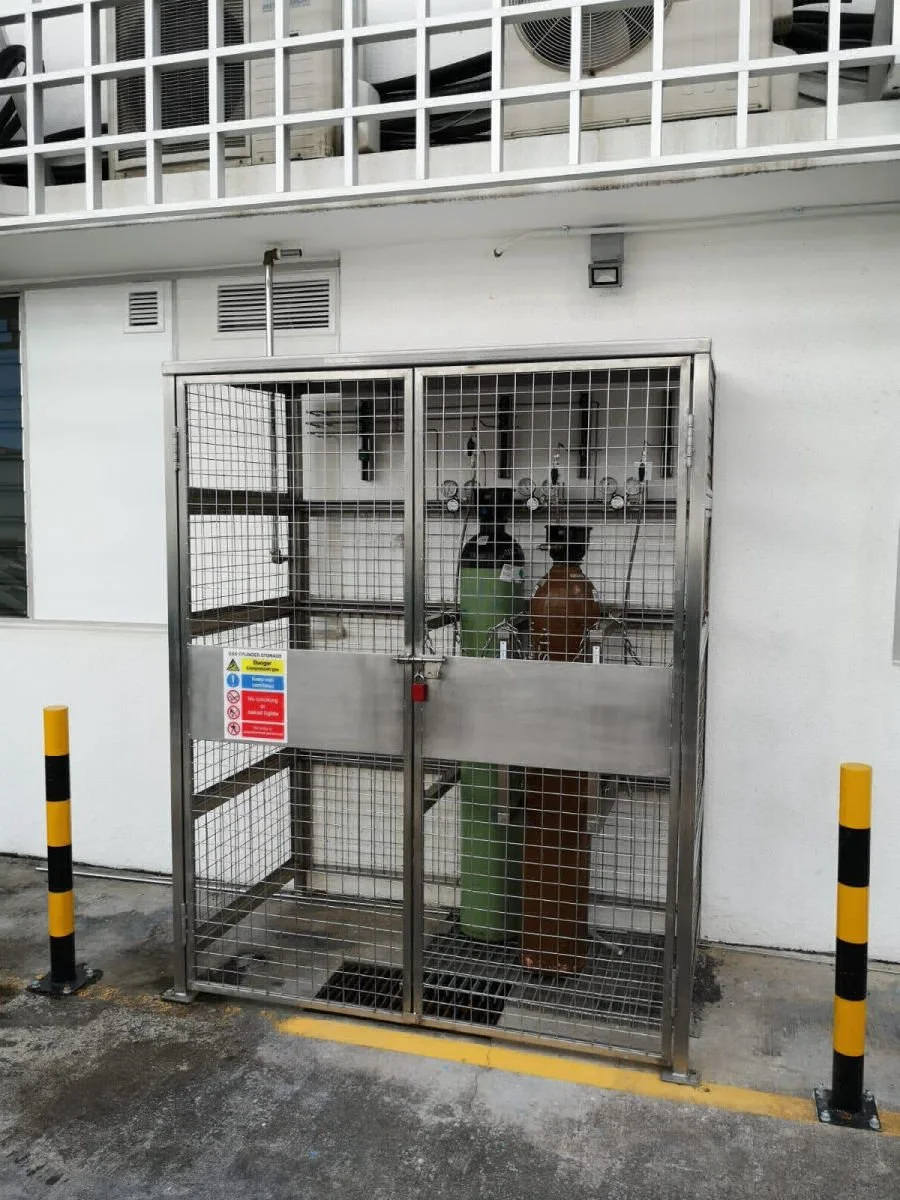

A fenced storage enclosure containing gas cylinders in front of a white building, with air conditioning units and balconies visible above.

Two yellow and gray industrial sensors attached to a white wall with orange cables connecting them, alongside a control panel on the left.

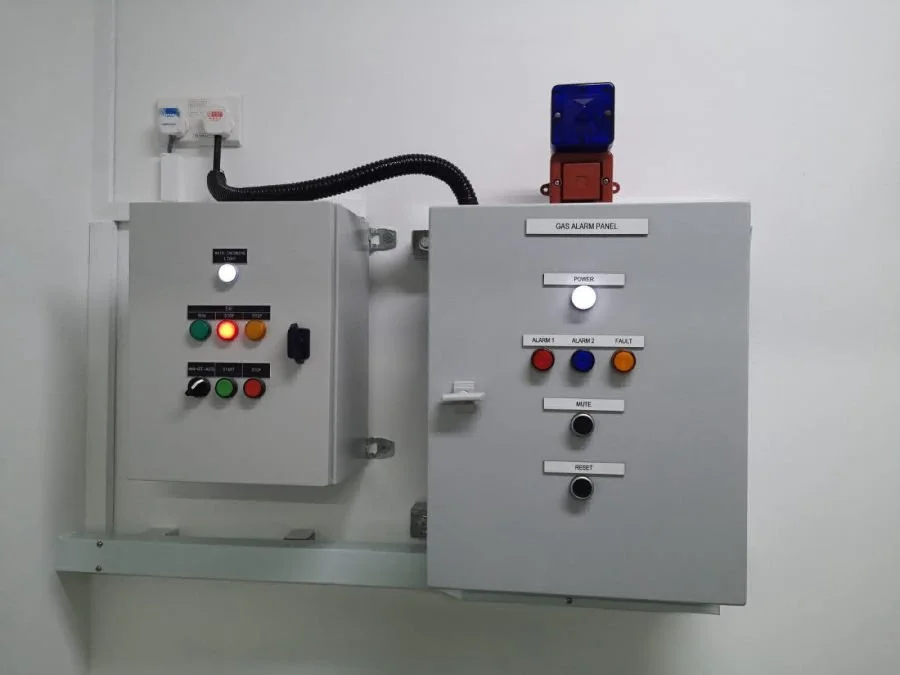

Electrical panel with gas alarm system, warning lights, buttons, and switches mounted on a white wall.

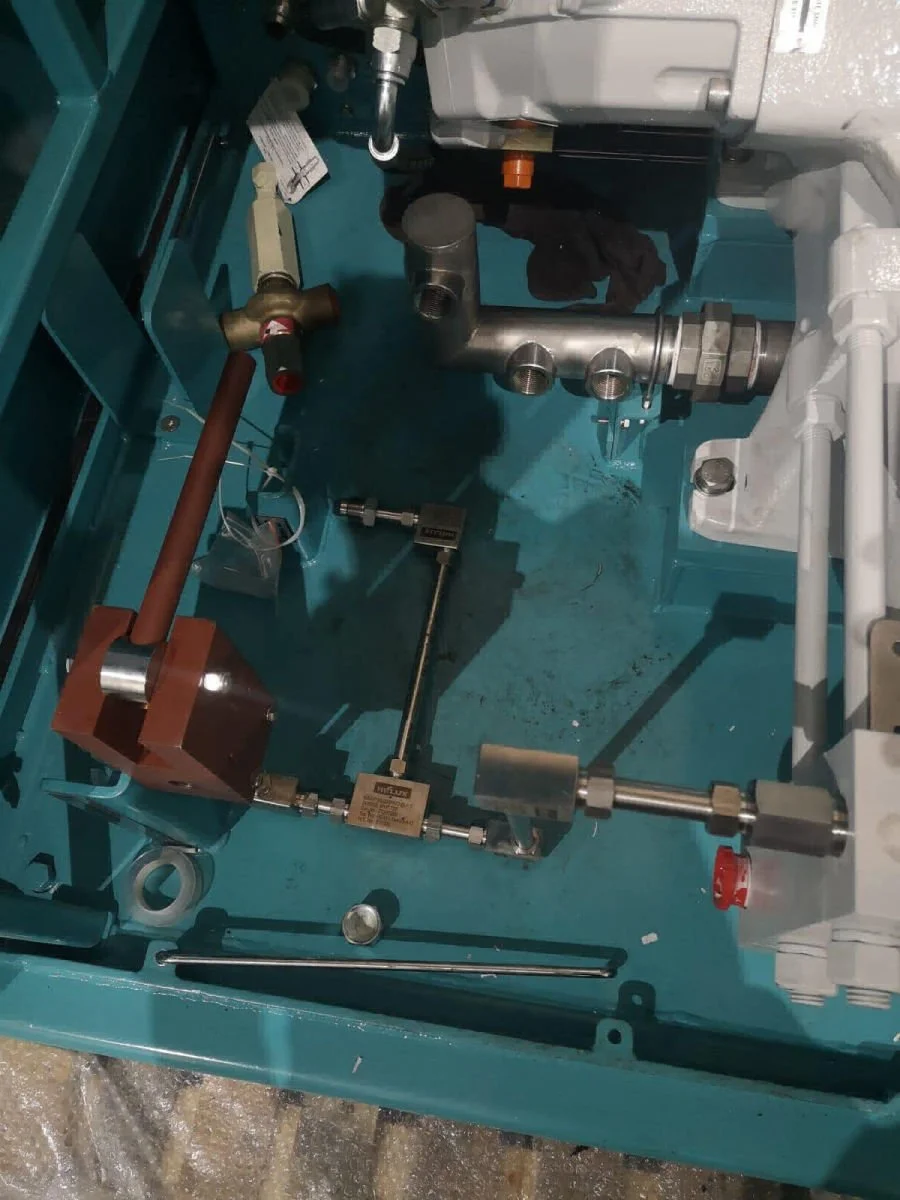

Close-up of plumbing and mechanical components inside an industrial or manufacturing machine, including pipes, fittings, and metal parts.

A stainless steel mobile medical or laboratory device with two pressure gauges, knobs, a thermometer, and various valves and pipes, situated on a factory or workshop floor.

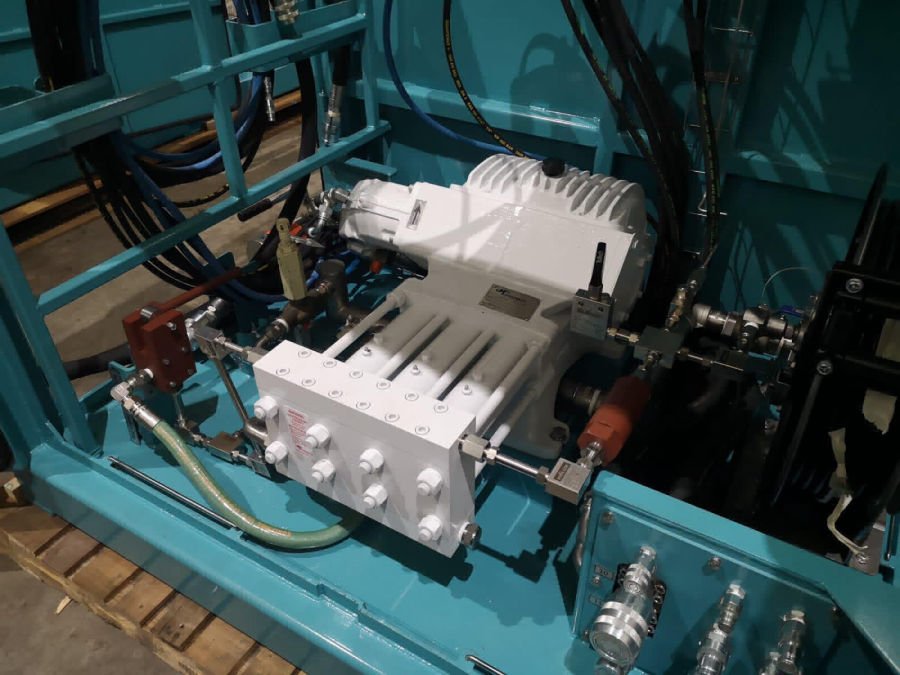

Installation Of Medium Pressure 9/16" Tubings On Triplex Pump

Comissioned Date: November 2020
Design Pressure Of System: 15,000psi / 1,034Bar
Operating Pressure: 10,000psi / 700Bar
Media: Hydraulic Oil
Application: Triplex Pump Flushing Unit

The Requirement: Client's existing Triplex Pump can go up to pressure as high as 15,000psi potentially. Triplex Pumps also produces high flow rate and based on client's engineer, the smallest tubing size they can accept is 1/2" OD. Due to this requirement, none of the standard seamless tubing in the market are able to withstand such high pressure. The solution we propose was to install autoclave 9/16" tubings on their existing flushing unit.

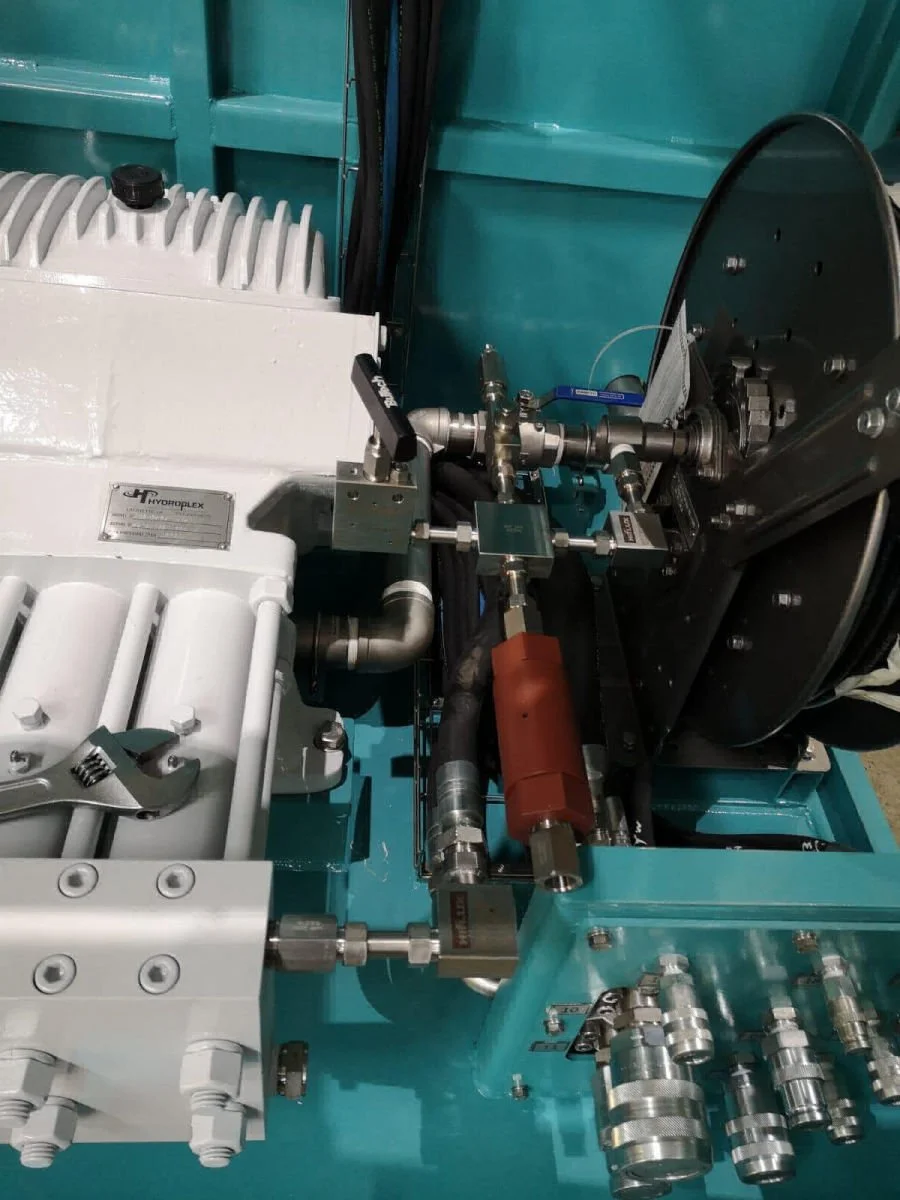

Close-up of industrial machinery with pipes, fittings, valves, and a white component on a teal-colored surface.

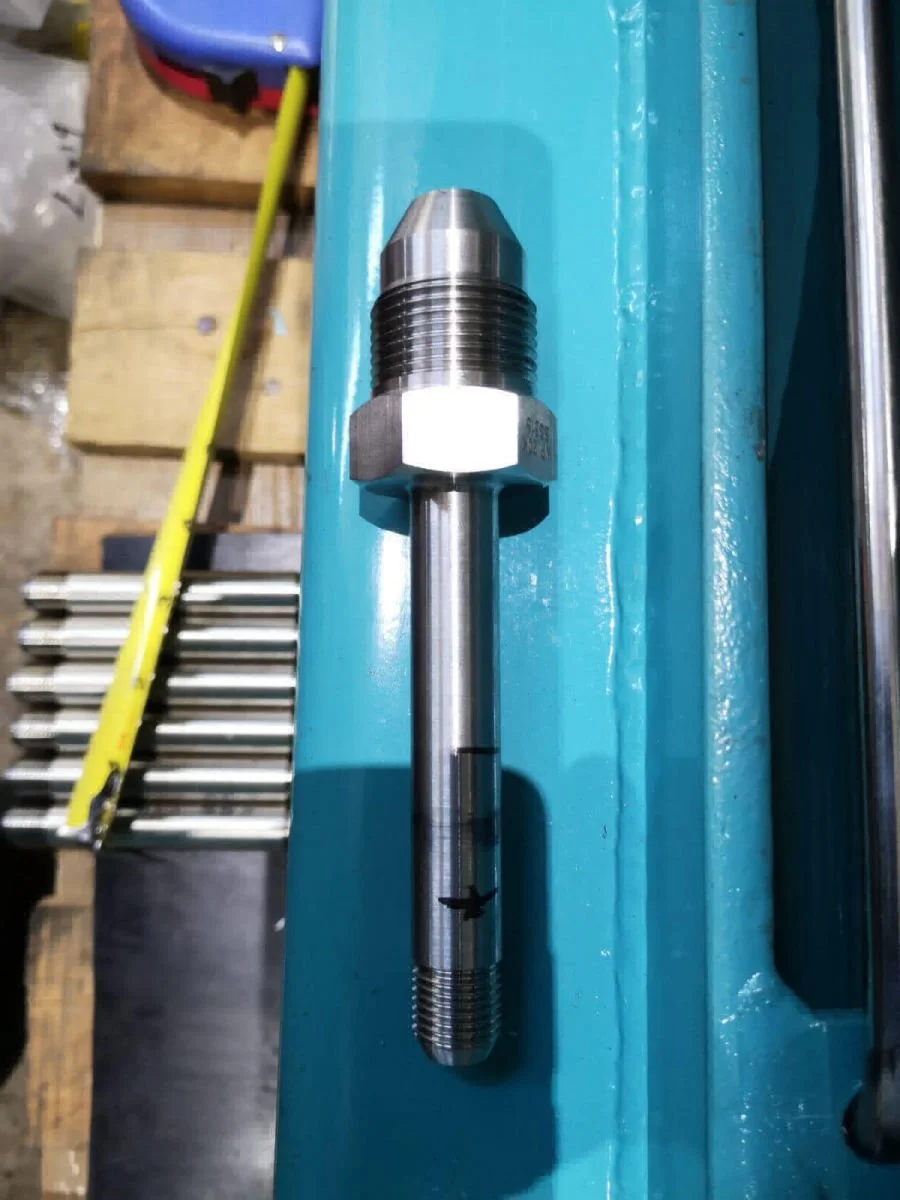

A close-up of a metallic bolt with a hexagonal nut, placed on a blue engineered surface.

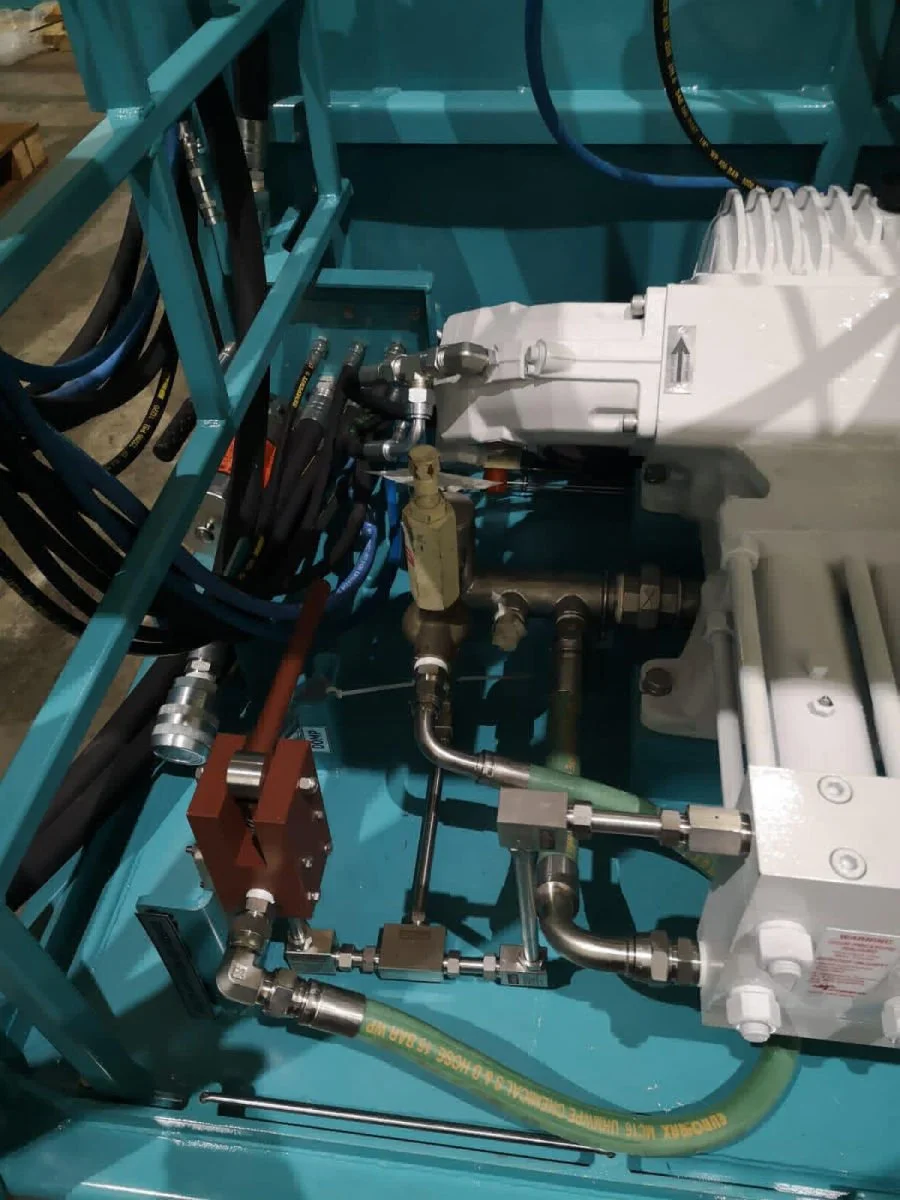

Close-up of hydraulic and pneumatic machinery with metal pipes, hoses, and valves, part of industrial equipment.

Close-up of industrial machinery with hydraulic valves, pipes, and controllers on a blue metal frame.

Customized Portable Hydrotest Unit c/w Castor Wheels

Comissioned Date: July 2020
Design Pressure Of System: 850psi / 60Bar
Operating Pressure: 850psi / 60Bar
Media: Water
Application: Pressure testing of various valves.

The Requirement: Client request that we built something which is portable and easy to manoeuvre as they plan to have the hydrotest unit at site to conduct pressure testing on a regular basis. In addition to the weight, they also require the hydrotest unit to have 2 outlet ports. One to be able to test up to 850psi (High Pressure Port). The other to be able to test up to 35psi (Low Pressure Port).

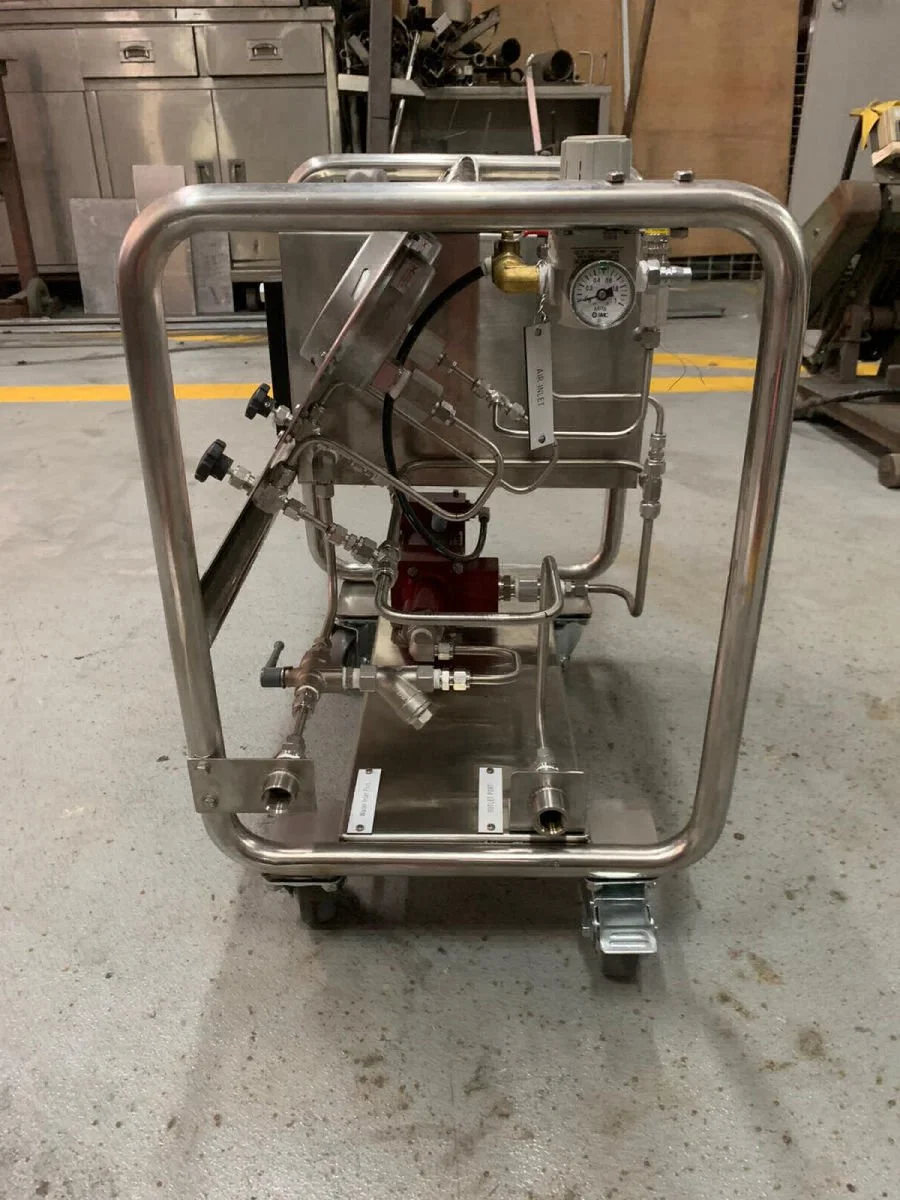

Stainless steel industrial equipment with pipes, a gauge, and valves on a metal cart in a workshop or factory setting.

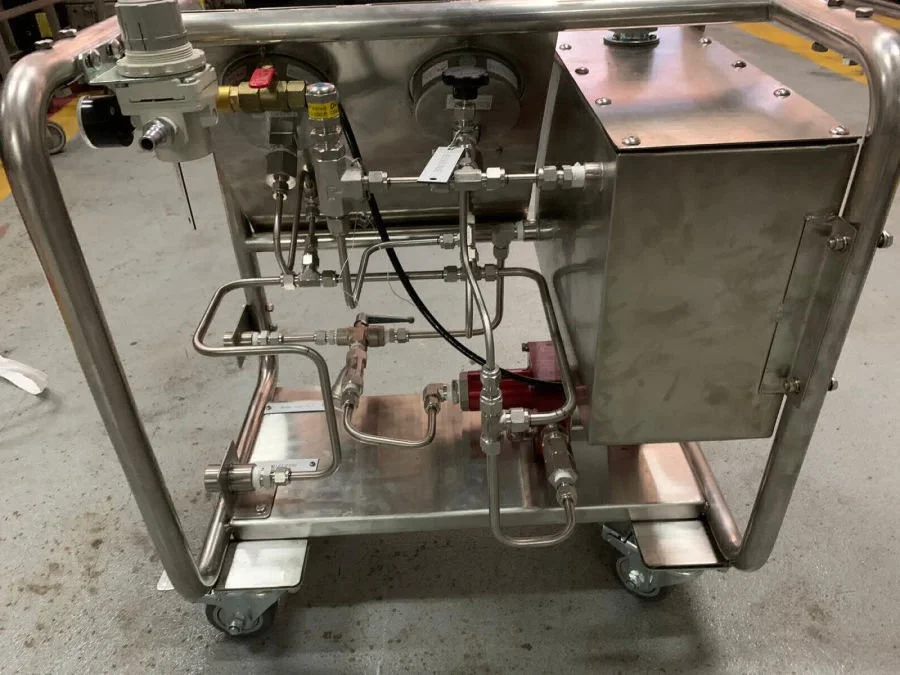

Stainless steel industrial equipment with pipes, valves, and gauges on a wheeled cart.

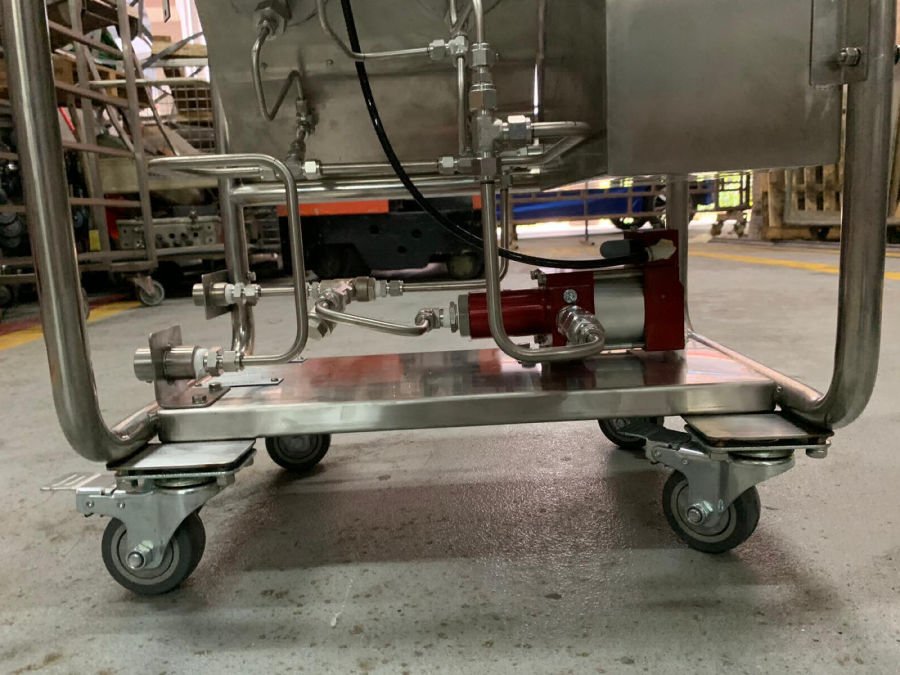

Metal equipment and piping on a stainless steel mobile cart with wheels in an industrial or warehouse setting.

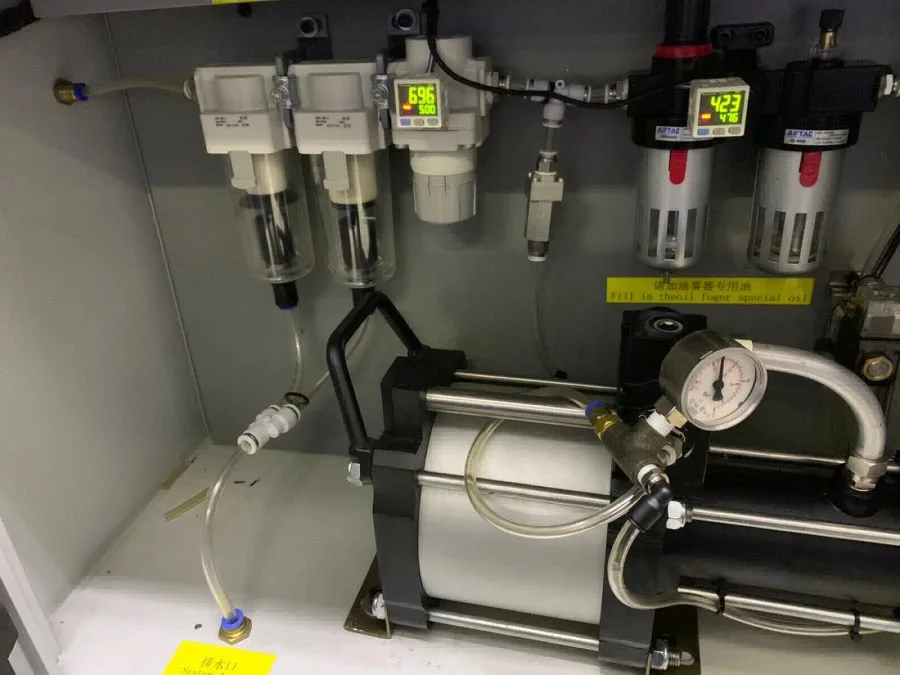

Modification Of Air Testing System

Commissioned Date: June 2020
Design Pressure Of System: 250psi / 17Bar
Operating Pressure: 200psi / 14Bar
Media: Industrial Air
Application: Pressure testing of semiconductor components

The Requirement: Client's original air testing unit is capable of testing multiple ports of pressure up to 100psi only. They decided to upgrade their system to have additonal ports which will be able to test pressure up to 200psi. The booster we added for the client will be able to meet that requirement and at the same time not affect the air flow which will test 100psi as it runs on it's own air inlet supply pressure.
